To be Certified in the National Marine Manufacturers Association you must meet all the guidelines set forth by the Society of Automotive Engineers (SAE) and the Code of Federal Regulations (CFR). This Includes safety inspectuions for Brakes, Winches, Lighting, Safety Chains, Couplers, ect.. Setting a Standard to make sure your equiptment will be reliable is at the forefront of our priorities.

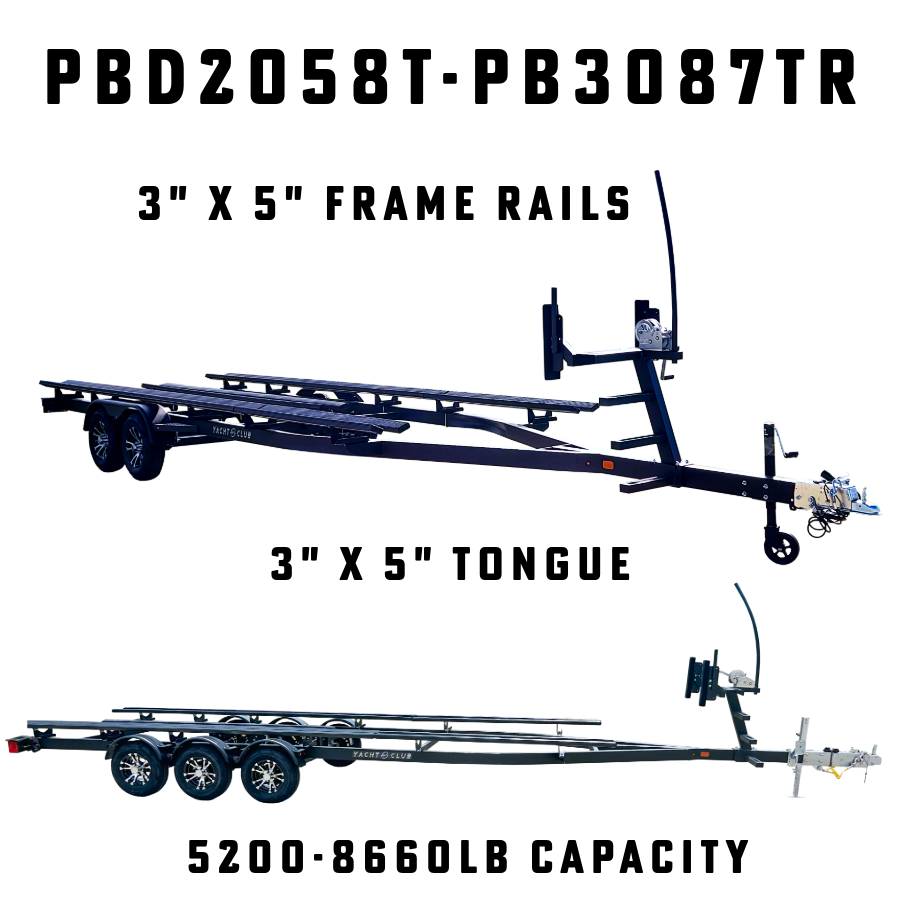

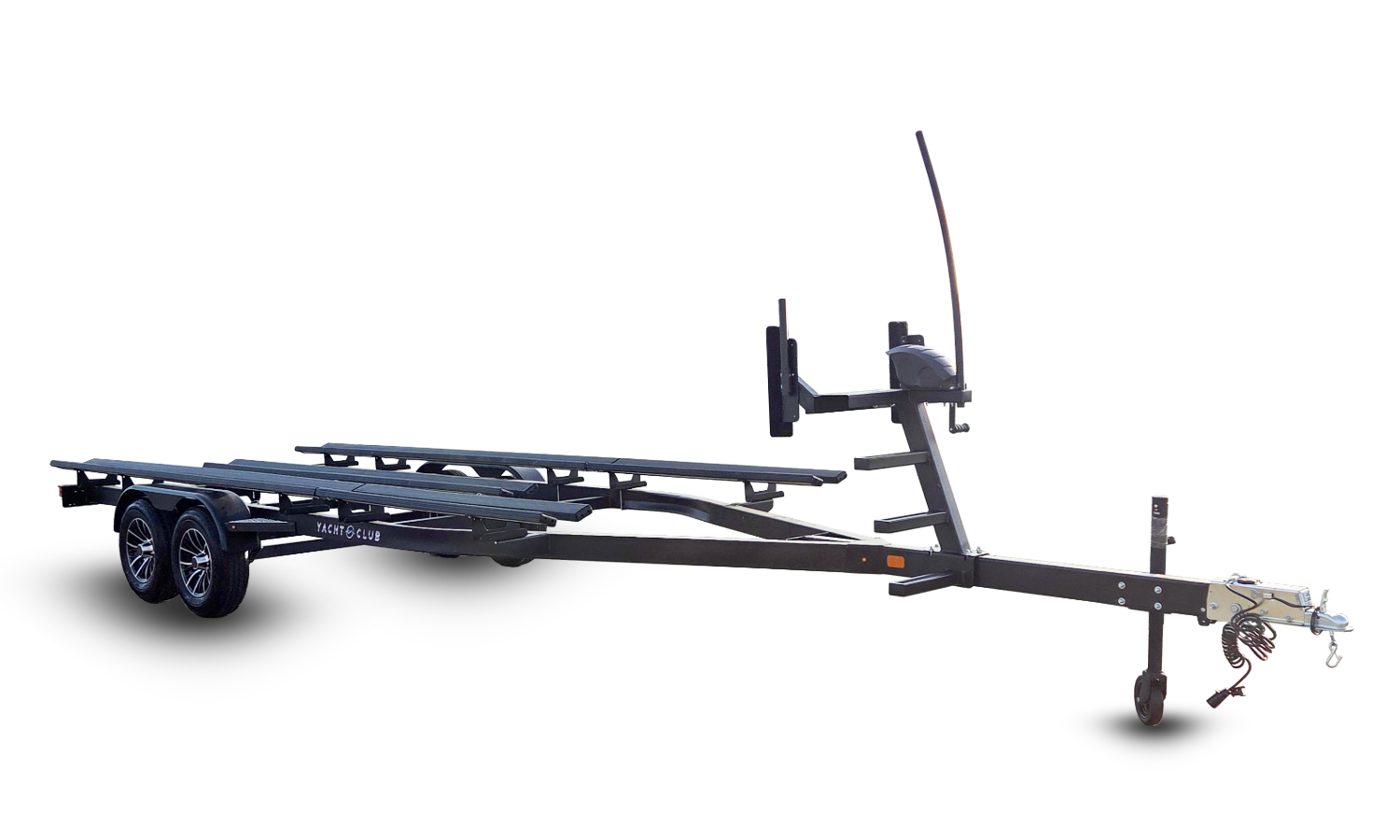

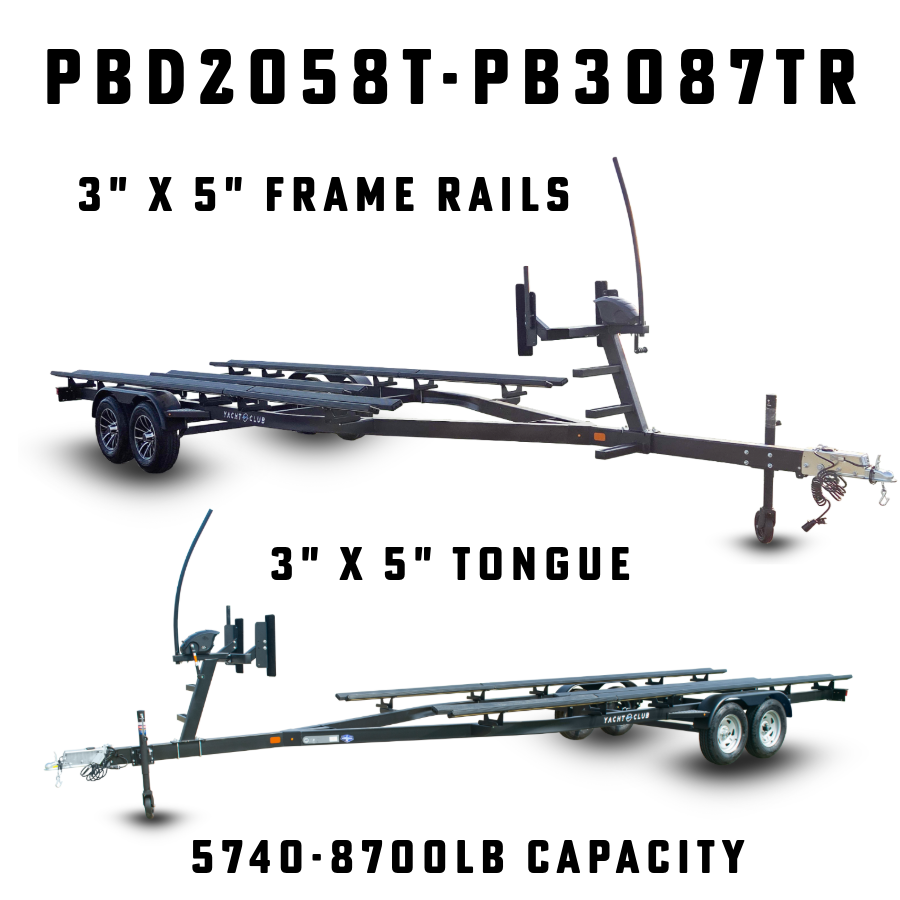

DELUXE "PBD" SERIES PONTOON TRAILER
| Model | Axles / Brakes | Tube Length | Overall Length | Carrying Capacity | Trailer Weight | Pontoon Width | Tire Size | Pdf Download |
|---|---|---|---|---|---|---|---|---|
| PBD2058T | 2/1 Disc | 18-20 | 25' 10" | 5200 | 1160 | 8' - 8'6" | 205R/15C | |
| PBD2058T-A | 2/1 Disc | 18-20 | 25' 10" | 5400 | 1160 | 8' - 8'6" | 205R/15C Alum | |
| PBD2258T | 2/1 Disc | 20-22 | 27' 10" | 5200 | 1180 | 8' - 8'6" | 205R/15C | |
| PBD2258T-A | 2/1 Disc | 20-22 | 27' 10" | 5400 | 1180 | 8' - 8'6" | 205R/15C Alum | |

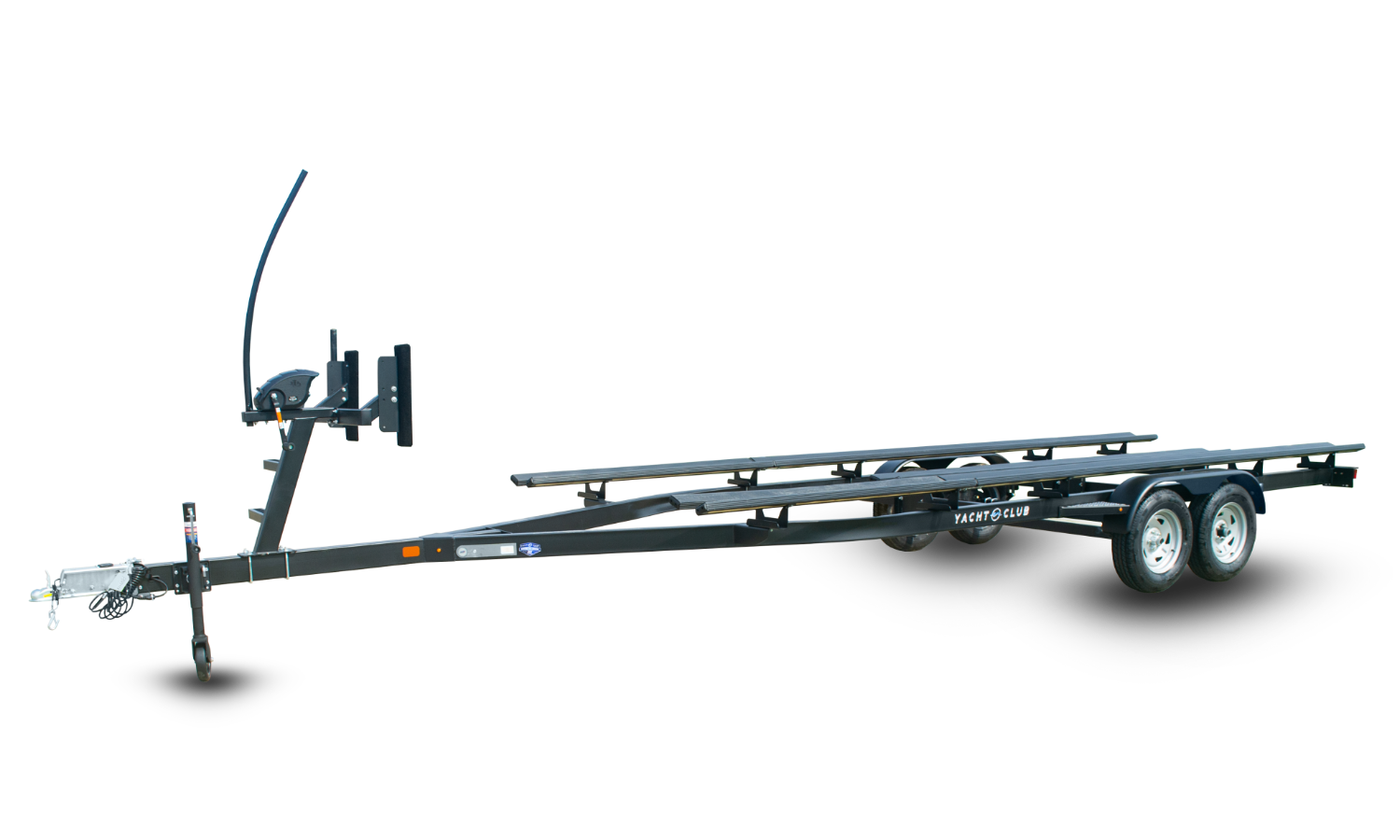

| PBD2458T | 2/1 Disc | 22-24 | 29' 10" | 5200 | 1200 | 8' - 8'6" | 205R/15C | |
| PBD2458T-A | 2/1 Disc | 22-24 | 29' 10" | 5400 | 1200 | 8' - 8'6" | 205R/15C Alum | |
| PBD2658T | 2/1 Disc | 24-26 | 31' 10" | 5200 | 1220 | 8' - 8'6" | 205R/15C | |
| PBD2658T-A | 2/1 Disc | 24-26 | 31' 10" | 5380 | 1220 | 8' - 8'6" | 205R/15C Alum | |
| PBD2684TR | 3/2 Disc | 24-26 | 31' 10" | 8370 | 1290 | 8' - 8'6" | 175/R13D | |
| PBD2687TR | 3/2 Disc | 24-26 | 31' 10" | 8700 | 1290 | 8' - 8'6" | 185/R13D Alum | 🖨️ |
| PBD2858T | 2/1 Disc | 26-28 | 33' 10" | 5200 | 1240 | 8' - 8'6" | 205R/15C | |
| PBD2858T-A | 2/1 Disc | 26-28 | 33' 10" | 5360 | 1240 | 8' - 8'6" | 205R/15C Alum | |
| PBD2884TR | 3/2 Disc | 26-28 | 33' 10" | 8350 | 1310 | 8' - 8'6" | 175/R13D | 🖨️ |
| PBD2887TR | 3/2 Disc | 26-28 | 33' 10" | 8680 | 1310 | 8' - 8'6" | 185/R13D Alum | 🖨️ |
| PBD3058TG | 2/1 Disc | 28-30 | 35' 10" | 5180 | 1260 | 8' - 8'6" | 205R/15C | |
| PBD3058TG | 2/1 Disc | 28-30 | 35' 10" | 5340 | 1260 | 8' - 8'6" | 205R/15C Alum | |
| PBD3084TRG | 3/2 Disc | 28-30 | 35' 10" | 8330 | 1330 | 8' - 8'6" | 175/R13D | 🖨️ |
| PBD3087TRG | 3/2 Disc | 28-30 | 35' 10" | 8660 | 1330 | 8' - 8'6" | 185/R13D Alum | 🖨️ |
EVERYTHING YOU NEED

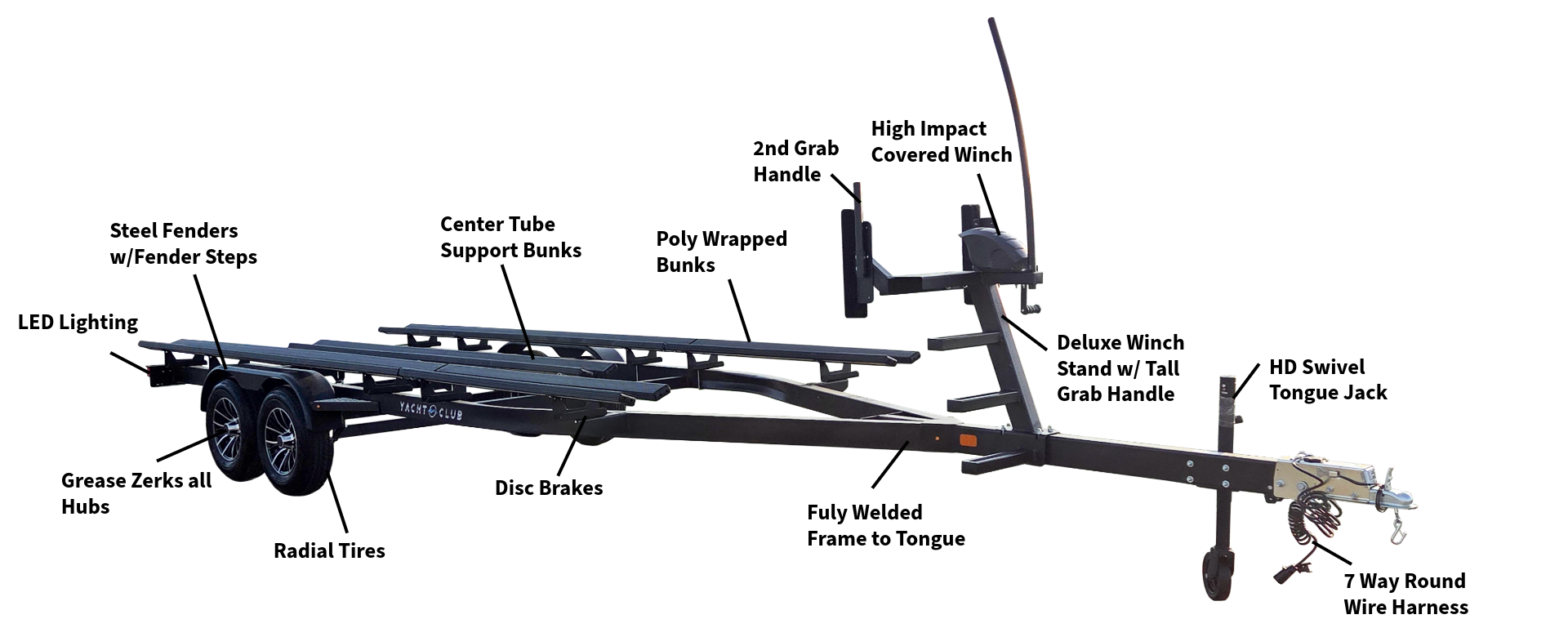

"PBD" Standard
Features
Your PBD Trailer is going to be equipped with the best options making it our go to for all your Pontoon needs.
View more

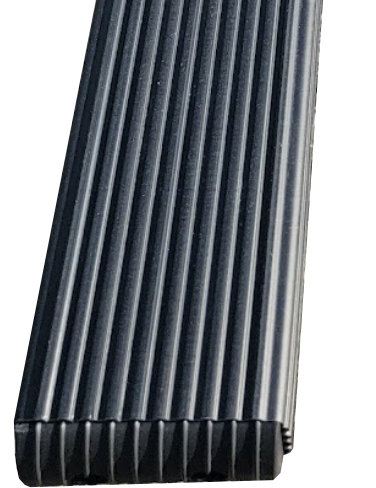

*8000# Models include Poly Tri-Tube Bunks

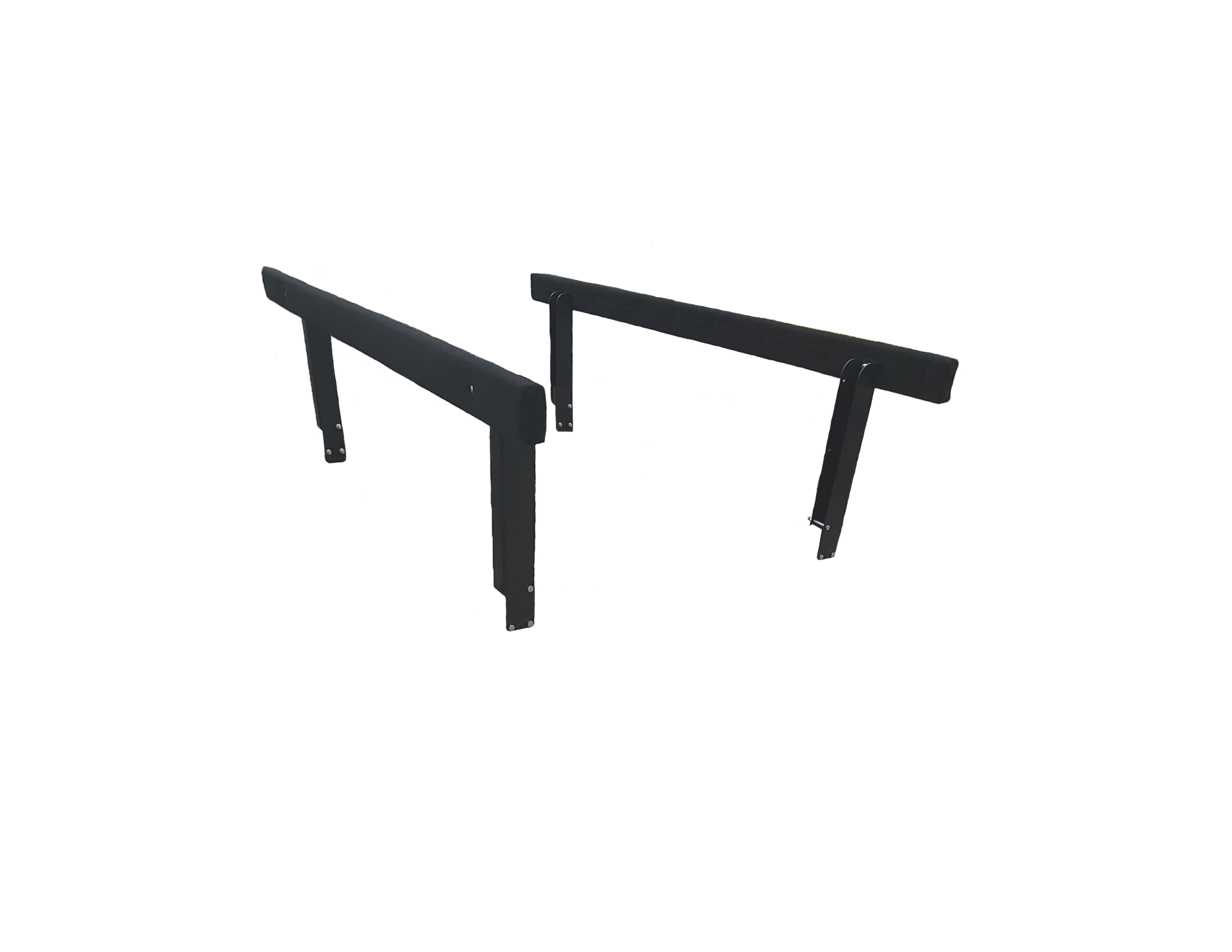

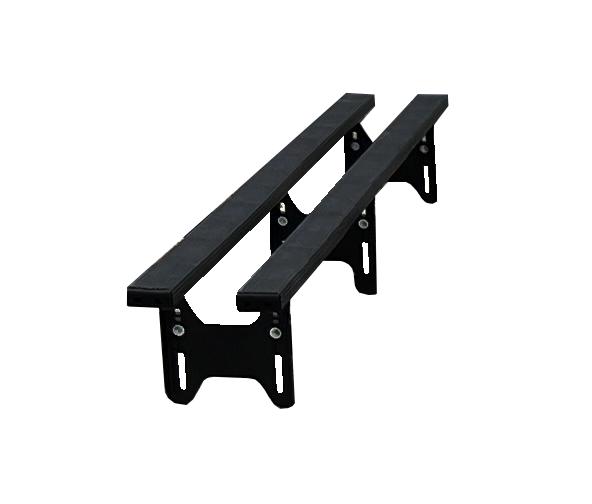

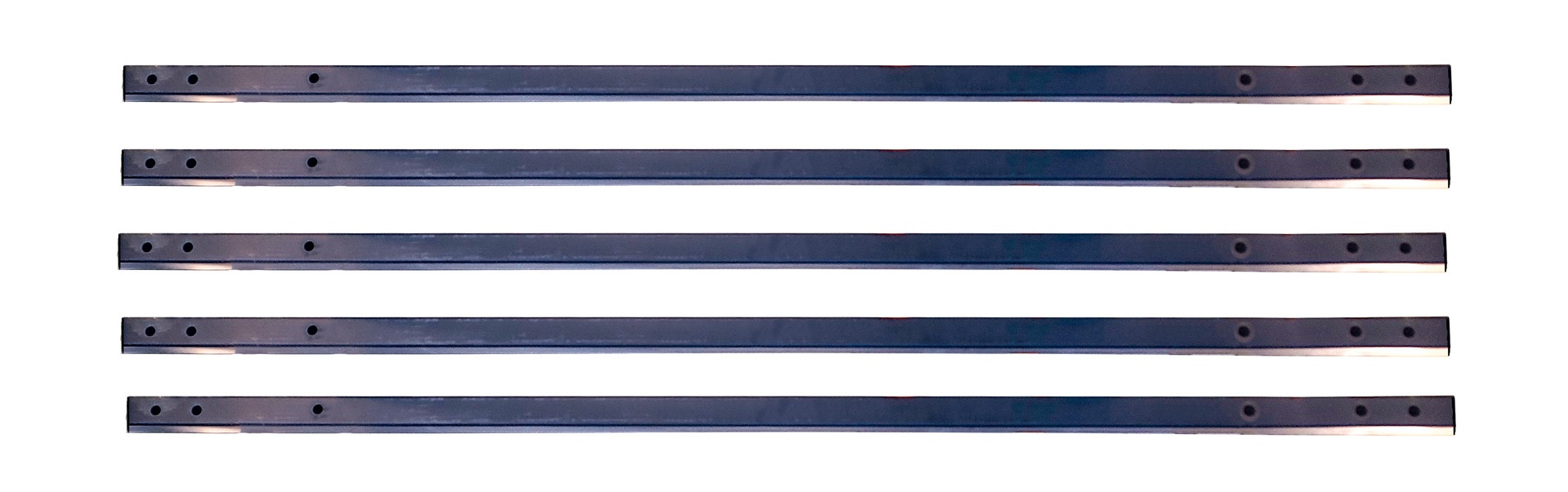

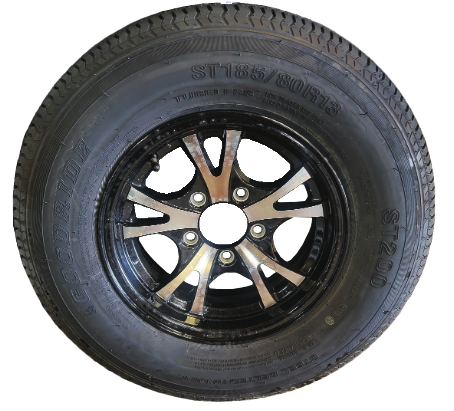

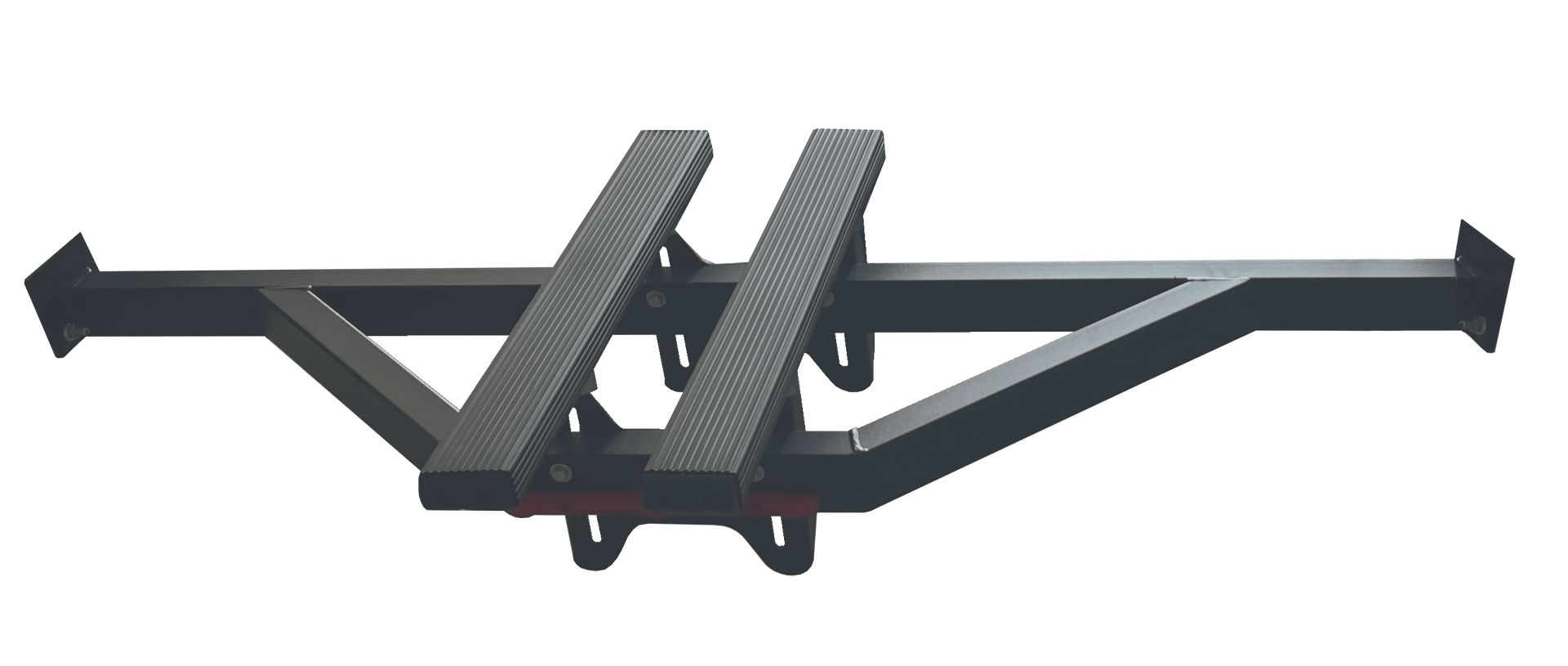

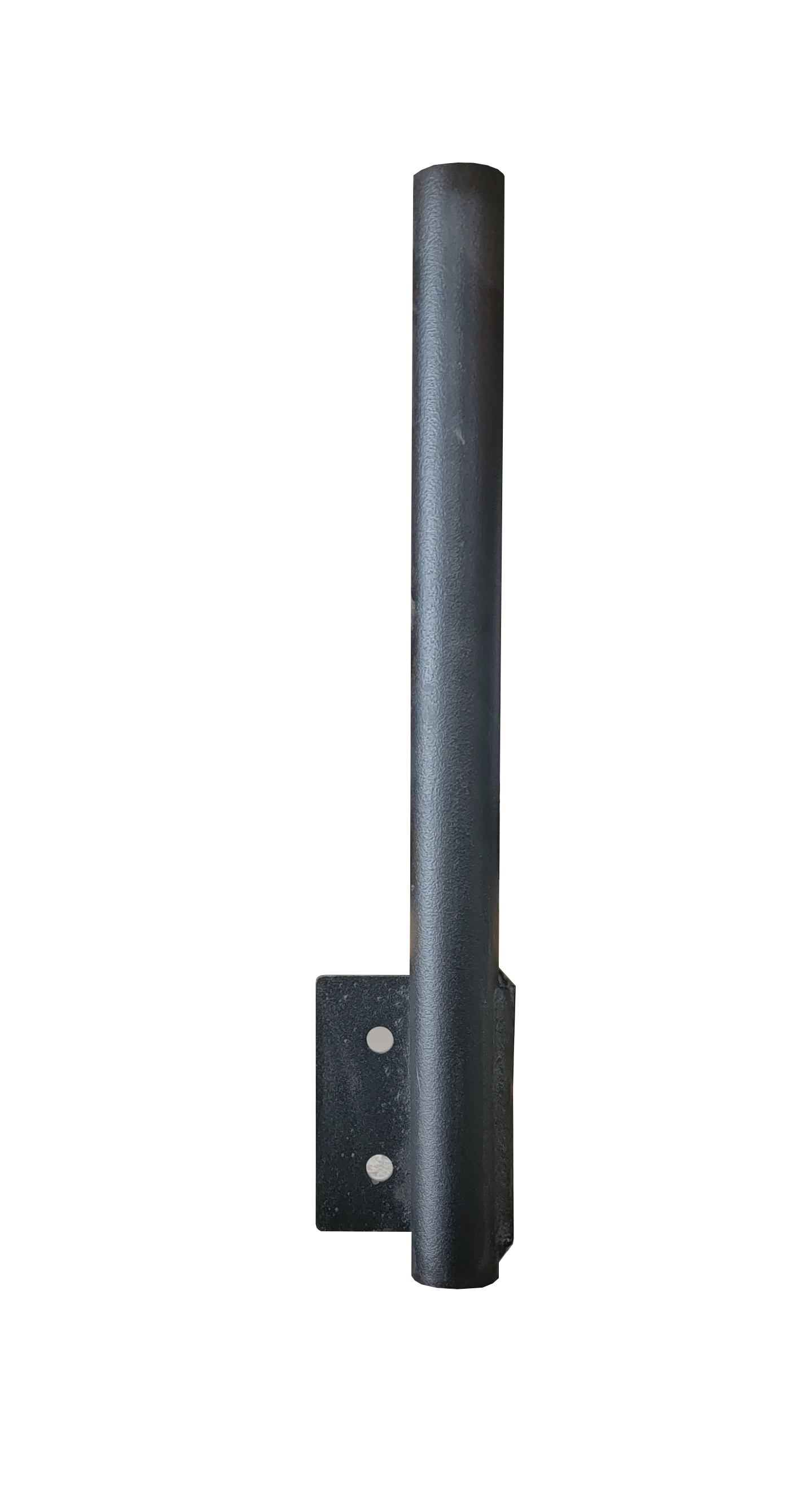

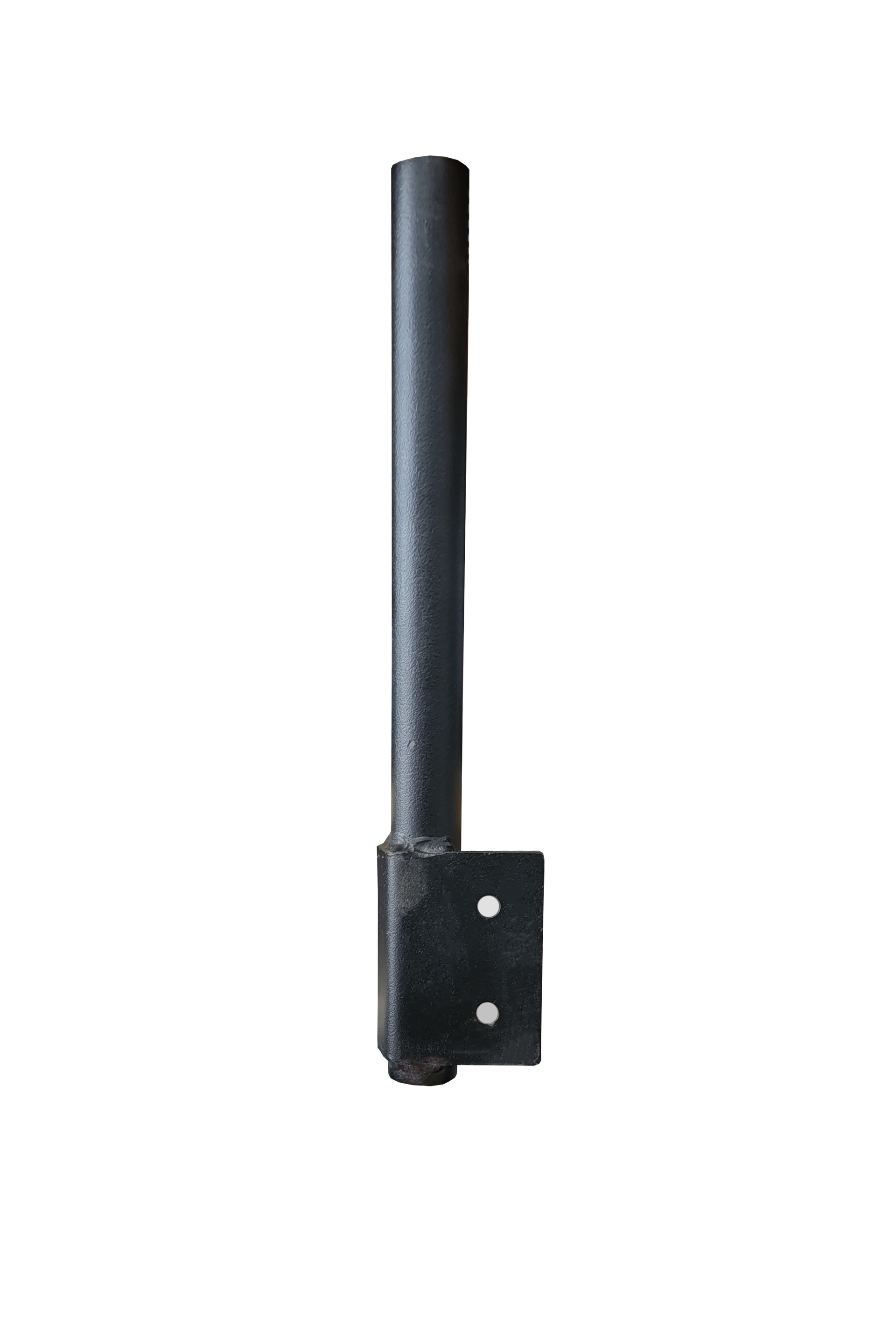

Optional Added Features
The National Association of Trailer Manufacturers is a standard carried on all of our trailers. What they focus on is making sure a trailer meets the all the necessary basic safety guidelines. This ensures proper Lighting, Reflective tape, Running gear, and Documentation. The NATM ensures that all trailers built meet the Federal Motor Safety Standards.
*All models pictured are subject to change without notice. Pictures may show trailers with added features
