To be Certified in the National Marine Manufacturers Association you must meet all the guidelines set forth by the Society of Automotive Engineers (SAE) and the Code of Federal Regulations (CFR). This Includes safety inspectuions for Brakes, Winches, Lighting, Safety Chains, Couplers, ect.. Setting a Standard to make sure your equiptment will be reliable is at the forefront of our priorities.

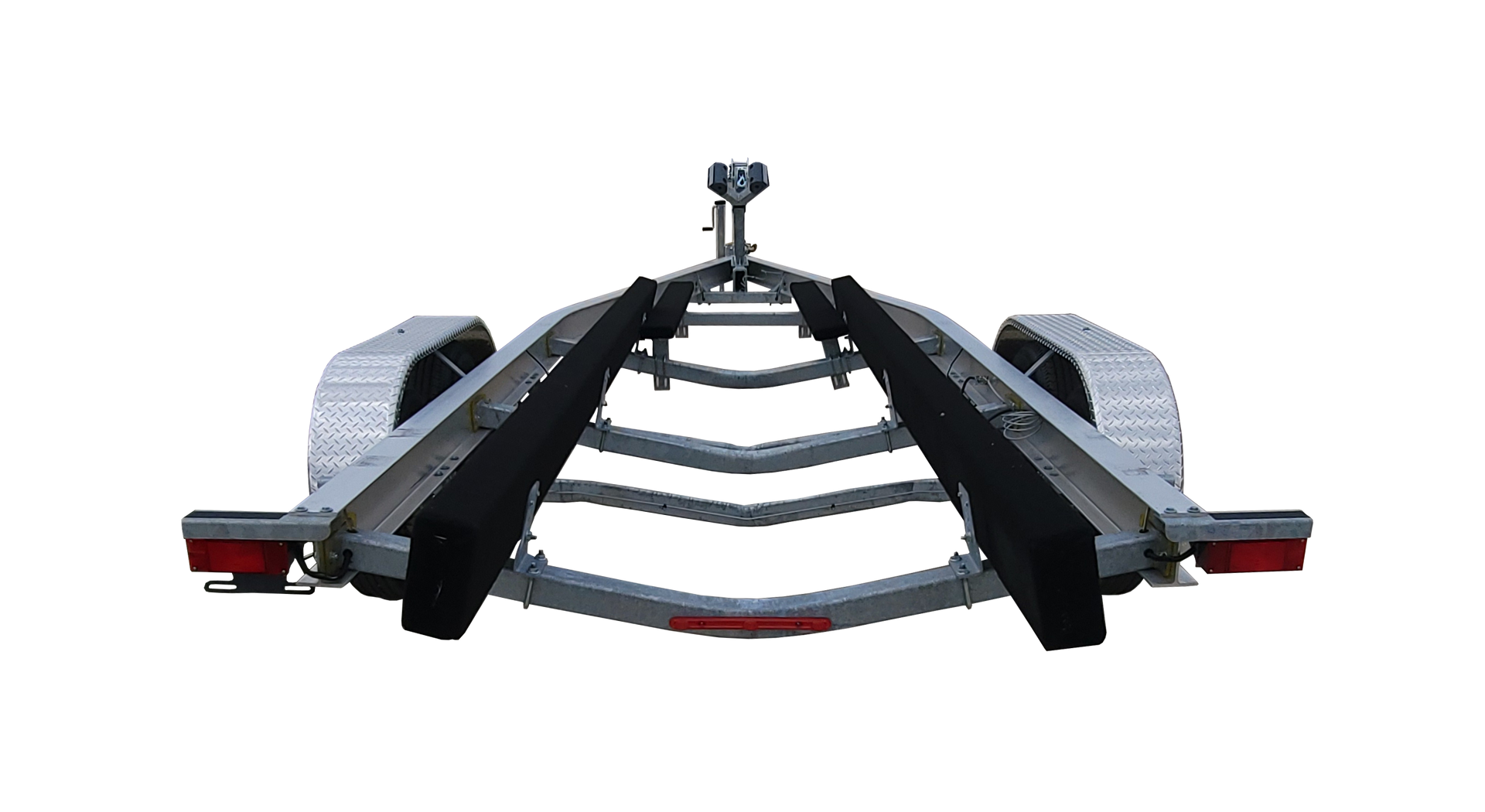

ALUMINUM I-BEAM BUNK SERIES
*Trailer w/Windless Bow Stop Upgrade

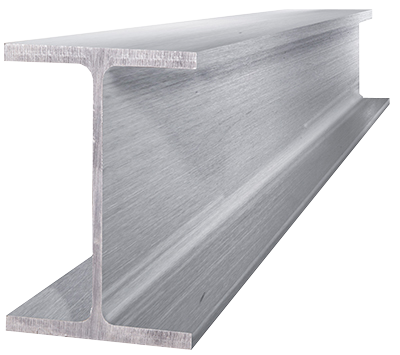

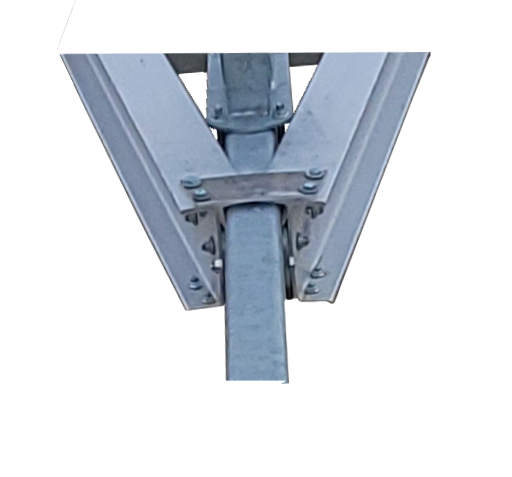

Durable I beam design provides Strength to accommodate heavier boats
Perfect for Salt Water Applications. Aluminum is a third of the weight of steel which means you will be able to pull more compared to the GVWR of steel. Rust and Corrosion resistance is also a key factor in Aluminum style trailers.

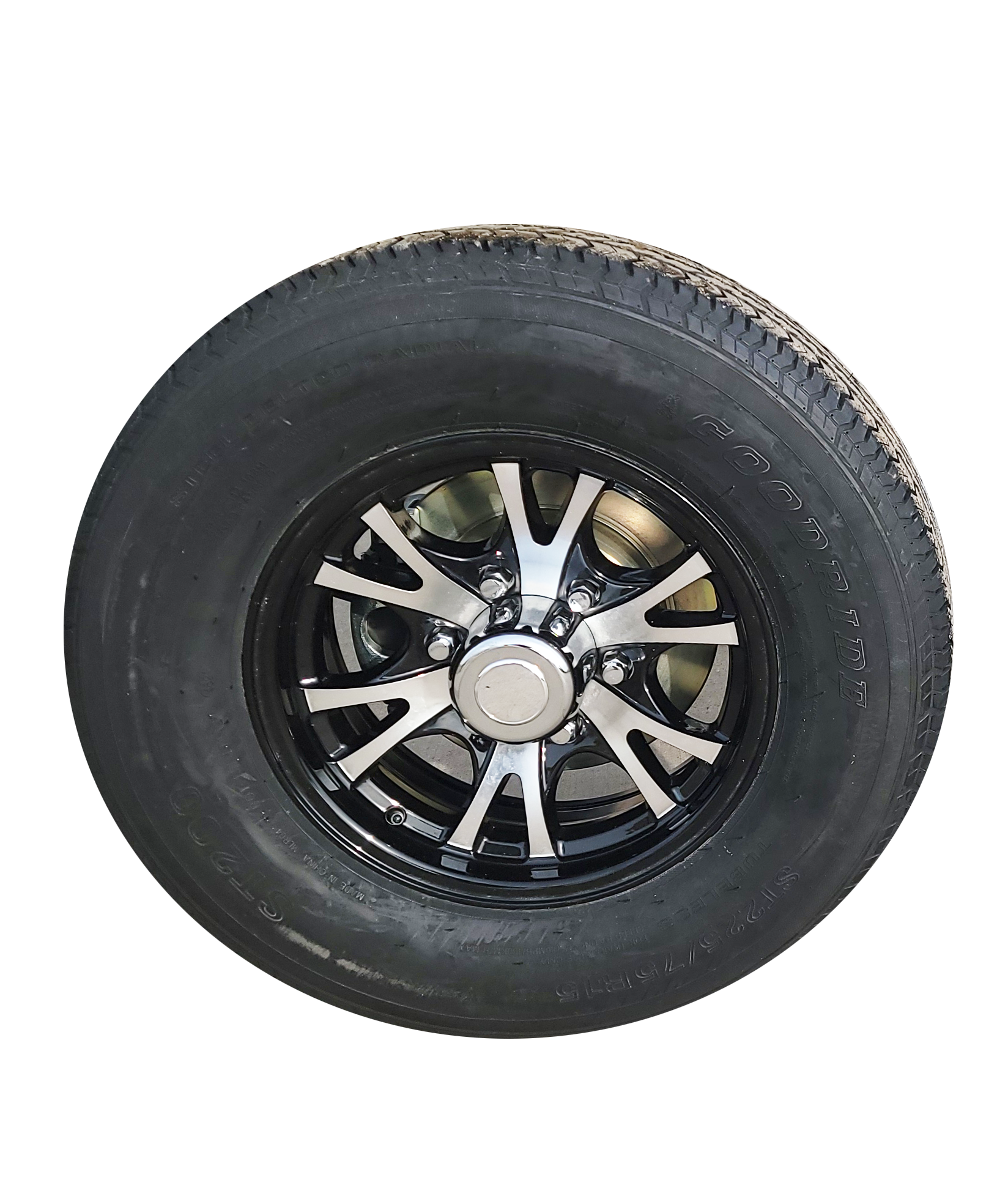

| Model | Axles/Brakes | Boat Length | Overall Length | Carrying Capacity | Trailer Weight lbs | Between Fenders | Tire Size | Bunk Size |
|---|---|---|---|---|---|---|---|---|
| A1925B | 1/0 | 17-19 | 21' 7" | 2,450 | 540 | 83 | 205/R14 alum | 2P 2T* |
| A1930B | 1/1 Disc | 17-19 | 22' 5" | 2,930 | 610 | 83 | 215/R14 alum | 2P 2T* |
| A2156TB | 2/1 Disc | 19-21 | 24' 5" | 5,600 | 940 | 83 | 215/R14 alum | 2P 2T* |
| A2356TB | 2/1 Disc | 21-23 | 26' 5" | 5,600 | 970 | 83 | 215/R14 alum | 2P 2T* |
| A2559TB | 2/1 Disc | 23-25 | 28' 5" | 5,900 | 1,050 | 82 | 215/R14 alum | 2P 2T* |
| A2580TB | 2/2 Disc | 23-25 | 29' 5" | 8,000 | 1,170 | 82 | 225/R15 alum | 2P 2T* |
| A2780TB | 2/2 Disc | 25-27 | 31' 5" | 8,000 | 1,210 | 82 | 225/R15 alum | 2P 2T* |
| A2980TB | 2/2 Disc | 27-29 | 33' 5" | 8,000 | 1,907 | 82 | 225/R15 alum | 2P 2T* |
| A29120TRB | 3/3 Disc | 26-29 | 33' 5" | 12,000 | 1,932 | 82 | 225/R15 alum | 2P 2T* |

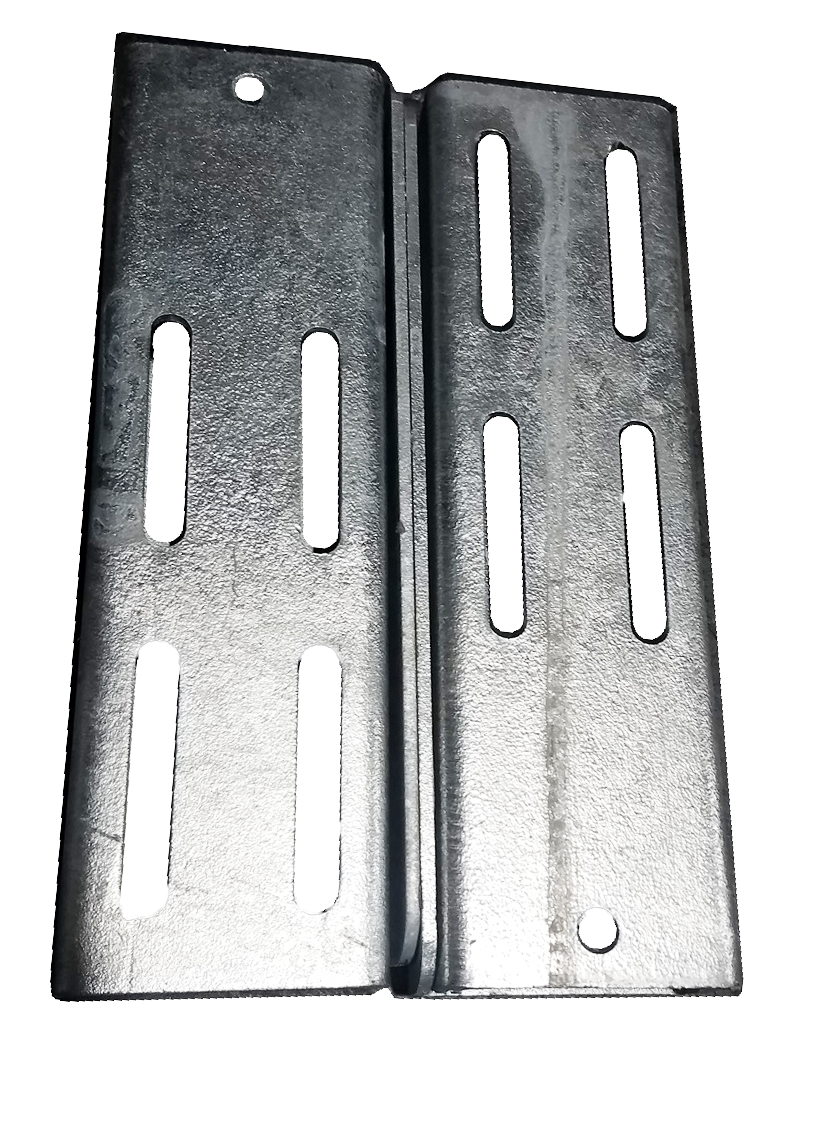

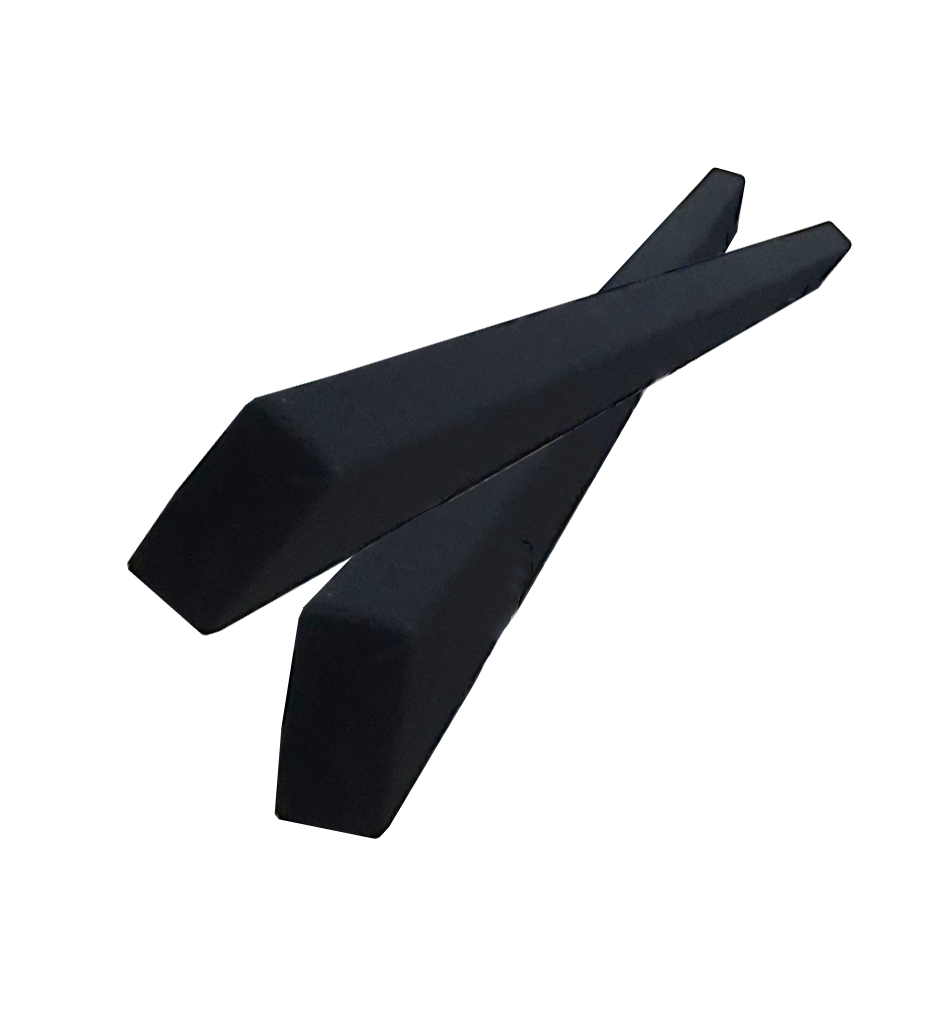

**2P 2T = (2) plank bunks and (2) 2 x 6 target bunks
Aluminum I-Beam Standard Features
Aluminum I-Beam trailers are known for their exceptional corrosion resistance. With their lightweight construction, they are specifically engineered to transport heavy loads efficiently. Additionally, these trailers require minimal maintenance, making them a practical choice. Furthermore, their sleek design adds to their overall attractiveness.
Additional Options

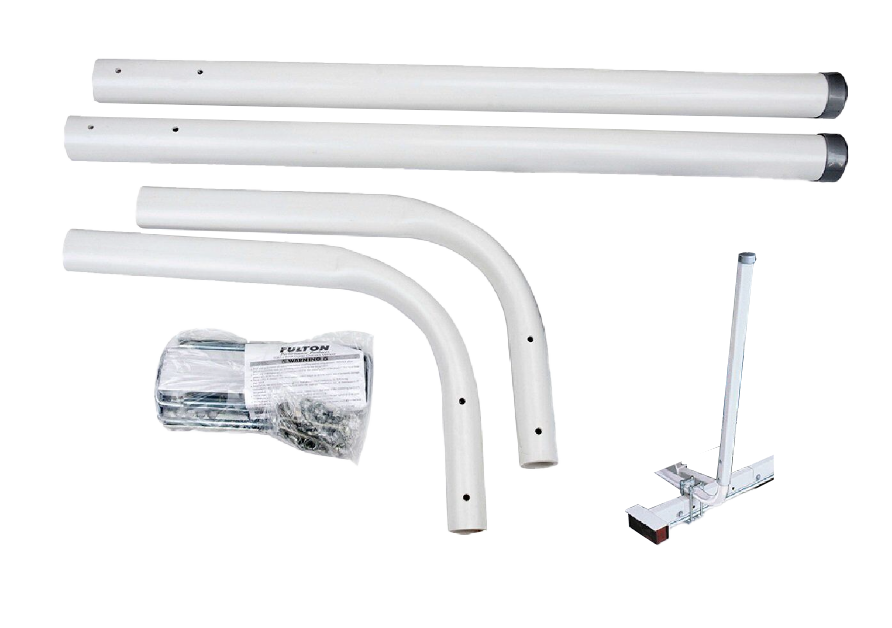

44" PVC Load Guides

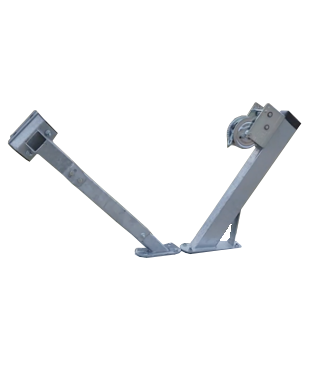

Windless Bow Stop Upgrade

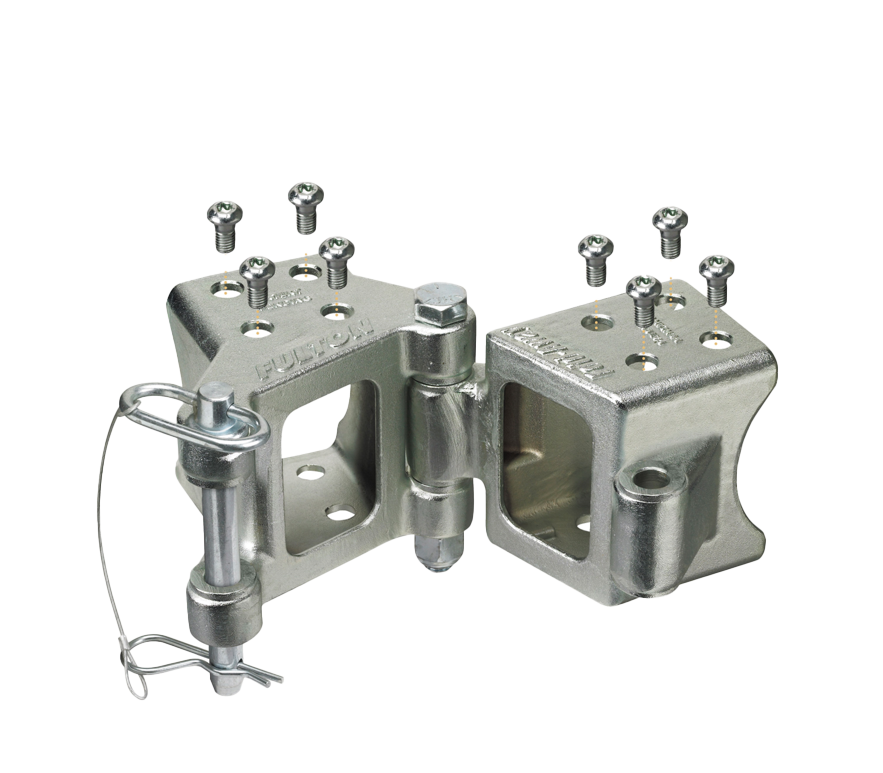

Swing Away Tongue
The National Association of Trailer Manufacturers is a standard carried on all of our trailers. What they focus on is making sure a trailer meets the all the necessary basic safety guidelines. This ensures proper Lighting, Reflective tape, Running gear, and Documentation. The NATM ensures that all trailers built meet the Federal Motor Safety Standards.
*All models pictured are subject to change without notice. Pictures may show trailers with added features
